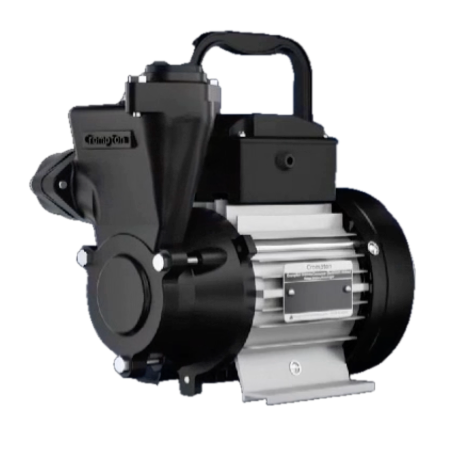

0.5 HP Self-Priming Monoblock Pump, Win Dura-II, Make: Crompton
Applications
- Water supply to bungalows, garages, flats, laundries, clubs.
- Gardening and lawn sprinklers
- Booster applications
- Ornamental fountains
- Water feeding in solar system
Minimum Order Quantity: 4 nos.
Warranty:24 months (2 Years)
Product Leaflet:
Product Presentation Video:
Choose Quantity
Rs.2,288.00 Rs.3,245.00
Product Details
Self Priming Monoblock Pump,
Power Rating: 0.5 HP,

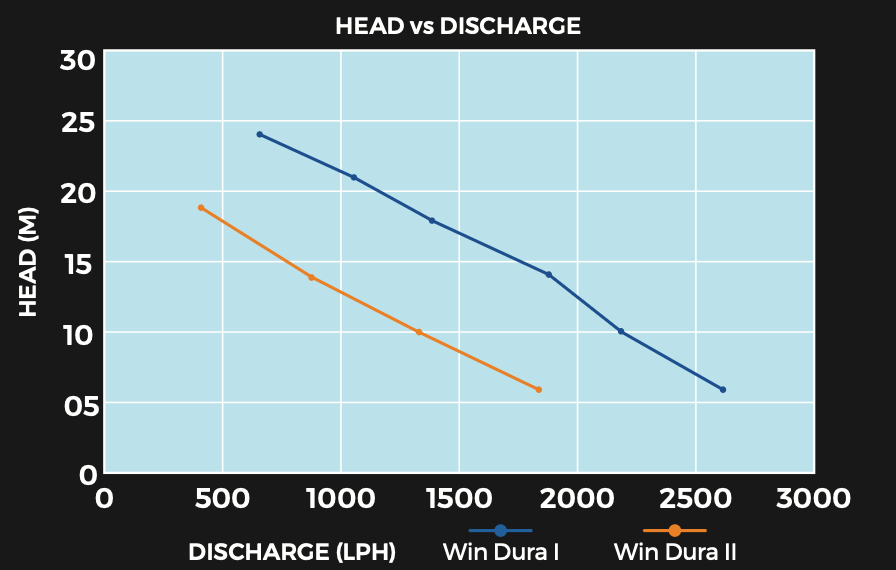

Max Height: 59 feet(18 meters),
Max Flow: 1850 Litres per Hour,
Model: Win Dura-II
Make: Crompton
MATERIAL OF CONSTRUCTION
1. Impeller - Forged Brass
2. Adaptor - Cast Iron – IS 210 Grade FG 200 + CED COATED
3. Volute - Cast Iron – IS 210 Grade FG 200 + CED COATED
4. Flanges - Cast Iron – IS 210 Grade FG 200 + CED COATED
5. Shaft - Stainless Steel-SS 410
6. Motor body - Aluminium Extruded + POWDER COATED
7. End Shield- Aluminium (ADC12)
8. Mechanical Seal - Carbon Vs Ceramic
9. Fan & Cover- PPCP
10. Terminal Box with Cover - PPCP
11. Water Deflector - LDPE
12. Winding - Enameled Aluminum 'F' Class
